Description

DUAL CPU

Samsung Primary CPU is 400MHz and the ARM architecture allows this Device to supply a remarkable flexibility and efficiency in computing power, together with reduced power consumption.

Secondary CPU AITP (Automotive Intensive Task Processor) supplies the necessary functionalities in the automotive field, like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates.

The AITP is OTA programmable for remote automatic firmware upgrade, and is always powered ON; it can turn-ON and OFF the Device and all its peripherals.

IDEAL FOR FLEET MANAGEMENT AND JOB DISPATCHING

The Device represents the state-of-the-art device for job dispatching and fleets management, an ALL-IN-ONE powerful and compact solution.

Its modem GPRS/EDGE (optionally also UMTS) allows very reliable communication with operating headquarters. The vehicle is located by the high performance GPS U-Blox 5 receiver with 50 channels, and compatible with the new European positioning system GALILEO.

Both GPS and GPRS modules can be powered ON and OFF regardless of Windows CE status.

An Hardware MUX Port is available which allows to send AT commands to the modem while the device is connected in GPRS, for example to request connection status, signal diagnostic and modem statistics.

All the communication and tracking features are assured by the AITP processor even when the Device is powered OFF: the GPS and GPRS modules are managed by the AITP both for power supply and for communication.

CUSTOMIZABLE USER INTERFACE

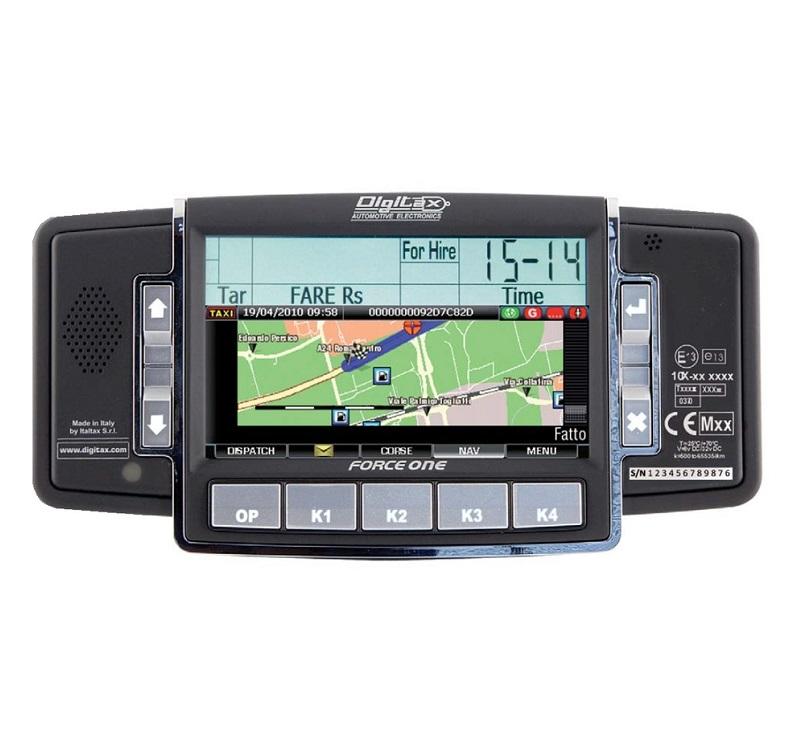

The 4.3 inches 16:9 clear readable TFT Displays with 480x272 resolution allow to develop versatile and high accessible applications, thanks also to the integrated TouchScreen controller, and to the 9 keys with LEDs available.

Hardware Keys avoid consumption and damage of Touch Screen for heavily used operations.

The ambient light sensor allows to choose an optimal brightness of the display in any environmental light.

INPUTS AND OUTPUTS

The Device supplies a wide range of communication channels with the external environment: two USB Host, one USB Device and up to 8 Serial Ports.

The special programmable digital inputs and outputs allow to control devices and read signals coming from generic external equipments.
